Strategies for managing anxiety before and during flight:

1. Preparation: Familiarize yourself with the aircraft, procedures, and your flight plan. Knowledge reduces uncertainty and builds confidence.
2. Breathing Techniques: Practice deep breathing exercises to calm your nerves. Inhale deeply for a count of four, hold for four, and exhale for four. This can help relax you.
3. Talk About It: Share your feelings with your instructor or fellow students. Talking openly can help alleviate anxiety and provide support.
4. Visualize Success: Spend time visualizing yourself successfully completing the flight, from take-off to landing. Positive visualization can help reinforce your confidence.
5. Stay Focused on the Task: Concentrate on flying and following your checklist. Focusing on specific tasks can help take your mind off anxious thoughts.

Checklists are vital tools in aviation for several reasons:

• Safety: They ensure that all essential tasks are completed, minimizing the risk of forgetting critical steps that could lead to accidents.
• Consistency: Using a checklist helps standardize procedures, making it easier for pilots to follow the same steps every time, which enhances safety.
• Confidence: A systematic approach helps pilots feel more organized and reduces anxiety, especially during complex tasks.
• Training Aid: For student pilots, checklists reinforce learning by outlining what to do at each stage of flight, promoting better retention of procedures.

Content

Overview of ailerons, elevator, and rudder:

• Ailerons: These are located on the trailing edge of each wing. Ailerons control the roll of the aircraft. When you turn the control stick to the left, the left aileron moves up and the right aileron moves down, causing the aircraft to roll to the left.
• Elevator: Positioned on the tail, the elevator controls the pitch (up and down movement). Pulling back on the control stick raises the elevator, causing the nose to rise and the aircraft to climb. Pushing the stick forward lowers the elevator, making the aircraft descend.
• Rudder: The rudder is located at the back of the aircraft and controls yaw (left and right movement). Pressing the left rudder pedal moves the rudder left, causing the aircraft to turn left. It’s important for coordinating turns and maintaining straight flight.

Tips for finding the right position in the cockpit:

1. Seat Height: Adjust your seat so that you have a clear view over the dashboard and can see both the runway and horizon.
2. Distance to Controls: Ensure you can comfortably reach the throttle, control stick, and rudder pedals without straining. Your legs should have a slight bend when pressing the pedals.
3. Backrest Position: Set the backrest to provide support for your lower back. Maintaining an upright position can reduce fatigue during longer flights.
4. Headset Fit: Ensure your headset fits comfortably to avoid distraction. A good fit is important for clear communication.
5. Visibility: Adjust your position to maintain a clear view of the cockpit instruments and outside surroundings. Proper visibility is critical for safe flying.

Planning a safe departure

Take – off in an aircraft happens when the plane lifts off the ground and becomes airborne. But there’s more involved in the process than simply leaving the ground. Several steps must be completed beforehand, and the take – off itself is broken down into different stages.

Pre-Take -off Preparations

Preparing for a flight involves thorough checks. Firstly, there’s the paperwork to handle. The pilot will need to book out, different procedures will apply for different airports and this information is available in the CAA AIP or commercial guides such as Pooley’s or Sky-Demon. Weight and balance calculations should be made and all navigation planning completed, and a flight log prepared. If departure or arrival aerodrome are limiting, then performance calculations should be made.

Weather forecasts should be checked to ensure that the flight may be conducted safely within limits.

Aircraft Technical log should be checked for any defects.

NOTAMS should be checked to see if they will impact the planned flight.

 In some cases, and for international flights you will need to file a flight plan and comply with specific requirements. NAC can give guidance and advice on this subject.

If there are passengers onboard, a safety briefing must be conducted, which is legally required, even if brief.

Next, the pilot performs the pre-flight checks. This involves a detailed walk-around of the aircraft, following a checklist and inspecting various components, from the wings to moving surfaces and fuel levels. This step is crucial because, unlike a car, the pilot cannot simply stop in mid-air to address any issues. Ensuring everything is in working order beforehand is vital.

Once the checks are completed, the pilot enters the cockpit, helps passengers board, and ensures that everyone is securely fastened and there are no loose items. Internal checks from the checklist follow, some of which are completed before the engine starts, while others are done once the engine is running.

Once all is ready and (where available obtaining the ATIS) the pilot radios to request radio check and departure clearance, once obtained a request to taxy call is made.

At airfields with only air/ground or AFIS service – request radio check and airfield data from the airfield service as appropriate.

Taxiing and Preparing for Take-off

Taxying is the process of moving the aircraft safely from its parking position to the runway. During this time, all taxying checks should be completed. It is important to clearly understand the taxy route so study the aerodrome chart to ensure that you understand the instructions that you have been given.

Taxying should be done slowly and carefully as accidents while taxying, often due to misjudged wingtip clearance, do happen.

Before reaching the runway or joining a queue of aircraft waiting for take-off, the pilot performs the Power Checks and Pre-take-off checks from the checklist. Again, make sure you know where these checks are to take place.

Once all checks completed and you are at the holding point call, with a Control service ‘ready for departure’ – ATC will either tell you to hold position, or line up on the runway, or clear you for take-off – read back the instruction. They will also give wind direction and speed and notify you of other traffic which may affect you.

Know the service that you are receiving – An Air Traffic Control Service can clear you to do anything including take-off, an AFIS service can only give ‘take-off at your discretion’ and give information on other traffic e.g. ‘C152 on right base – take off at your discretion’ – they will give you wind direction and speed and may advise on known traffic.

Air ground will rely on you to judge when it Is safe to take-off and give no instruction, they may give other information if it is known to them.

Lining Up on The Runway

Regardless of type of service maintain a good lookout for other traffic especially on Final Approach, if unhappy about the situation advise Air Traffic Service that you are holding position. For example ATC may clear you for immediate take-off due traffic on final – if not confident that you can achieve an immediate take-off it is safer not to do so and remain at the holding point!

Carry out memory Checks:

A – Altimeters correctly set

T – Transponder – correct Squawk and Altitude Reporting

P – Pitot Heat on (as required)

L- Landing Lights on

Once on the centreline check runway alignment against DI/HSI.

The Take-off Roll

The take-off roll is the part of the procedure where the plane accelerates on the ground until it reaches the speed necessary to generate sufficient lift for take-off.

Once aligned with the runway, the pilot sets 2000 RPM against the brakes – checks Engine Temps and Pressures and then releases brakes and applies full power. The speed increases and is checked, and the pilot keeps straight on the runway centreline using rudder and in crosswinds into wind aileron until the aircraft reaches the correct rotation speed.  Selecting a suitable reference point ahead and to the side will assist in maintaining the correct ground track after lift – off.

The pilot must then ensure the aircraft climbs at the correct angle and speed. A climb that is too slow can result in a stall, while a climb that’s too steep may prevent the plane from gaining sufficient altitude quickly enough. Achieving the right balance is crucial for safety, as a safe height must be reached as soon as possible. In the unlikely event of an engine failure after take-off, the ability to land safely is greatly diminished if the aircraft is still near the ground.

Aborting the Take-off

Should anything go wrong during the take-off roll, the pilot can abort the take-off by closing the throttle and applying the brakes and coming to a stop before the end of the runway. ATC should be notified of the aborted take-off once at a safe taxy speed. Do not attempt another take-off!

Post-Take-off Procedures

Once airborne, keep one hand on the throttle until at a safe height (at least 200’ AGL) If the flaps were deployed for take-off, they may then be retracted in stages. And a climb at Vy achieved.  Turns on course should be made in accordance with published airfield procedures and taking account of any noise abatement requirements.

Short or Soft Field Take- offs

There are instances where take-off procedures will differ slightly, often due to short runways or soft ground, such as grass airfields. If unfamiliar with these procedures they should be practised with an Instructor before any attempt is made

In short-field take-offs, the pilot must first calculate whether take-off is possible under the current conditions. This is completed by performing performance calculations as part of pre-flight planning. If it isn’t, the attempt must not be made.

In these cases, flaps are used, and the aircraft is lined up to maximise the available runway available. After applying full power while holding the brakes, the aircraft can accelerate in the shortest distance possible.

Once the optimal speed is reached, the aircraft is lifted off and climbs at the best angle of climb (Vx) to clear any obstacles on the ground before, at a safe height retracting the flaps in stages and transitioning to the best rate of climb (Vy).

For soft-field take-offs, the goal is to avoid stopping on the soft ground, such as mud or ice. The take-off roll begins as soon as possible after taxying, and the aircraft is lifted off at the lowest safe speed possible to remain in ground effect until a safe flying speed is reached, minimising the time spent on the soft ground.

Conclusion

In conclusion, take-off is a critical phase of flight that requires careful attention. While generally straightforward, numerous factors can go wrong, and pilots must always approach take-off with caution and precision to ensure a safe and successful flight.

As ever talk to one of the NAC Instructors for advice on safe take-off techniques.

Captain Laurie Ling

Aircraft trim refers to the small adjustments made to the flight control surfaces that help maintain a desired attitude of the aircraft without the pilot having to exert constant force on the controls. Think of it like fine-tuning the controls to ensure the plane flies straight and level.

Importance of trim: Proper trim is crucial for several reasons:

• Reduced Pilot Workload: By adjusting the trim, pilots can fly hands-free for long periods, reducing fatigue.
• Enhanced Stability: Properly trimmed aircraft are more stable and easier to control, especially during long flights or in turbulent conditions.
• Improved Comfort: A well-trimmed aircraft allows for smoother flying, making the experience more enjoyable.

Basic definition and signs of an impending stall: A stall occurs when the aircraft exceeds its critical angle of attack, causing a significant loss of lift. Recognizing a stall is essential for recovery:

• Signs of an Impending Stall:
  • Sound: You may hear a stall warning horn if equipped, indicating you’re nearing a stall condition.
  • Buffeting: The aircraft may start to shake or buffet as it approaches a stall.
  • Nose Position: If the nose begins to pitch up excessively and you’re losing speed, you could be approaching a stall.
• Recovery: To recover, immediately lower the nose to decrease the angle of attack and apply power to regain airspeed then ease out of the dive.

Landing an aircraft may seem challenging at first, but rest assured, it becomes more intuitive with experience. There are several simple techniques you can begin using immediately to help improve your landings. Here, we’ll explore 16 landing tips for private pilots, along with answers to common questions students often ask.

What You Should Know…

16 Landing Tips for Student Pilots

While quality flight instruction is irreplaceable, there are several skills you can develop on your own when practicing circuits. Below is a collection of 16 tips to help you master smooth landings.

1. Focus on One Thing at a Time

Have you ever tried multitasking and ended up doing both tasks poorly? It’s a similar story in flying. Trying to juggle airspeed, alignment, and altitude all at once can be overwhelming.

Instead, break your landing down into smaller steps. Concentrate on managing one aspect before moving to the next. As you practice, you’ll gradually start coordinating all these elements together.

To get started:

• Set your speed early in the downwind leg, trimming the aircraft so only minor adjustments are needed later.
• Align with the runway as soon as possible, so once your speed is sorted, you can focus on your descent.
• Trim for speed rather than attitude. If you find yourself adjusting too much, try configuring the aircraft a little earlier.

    2. Request a Longer Final Approach

In an aircraft, the more distance you have, the more time you have to make decisions. If you’re feeling pressured, don’t hesitate to ask air traffic control for a longer final approach. This will give you more time to get everything lined up and correct any issues early on, leaving you more time to focus on the approach itself.

     3. Memorise the Take-off Attitude

Many new pilots find judging the flare tricky. A helpful way to get it right is to recall the position of the horizon on the windscreen during takeoff. This is often similar to what you should see when beginning the flare.

4. Stay Aware of Wind Conditions

Every day in the air is different, particularly when it comes to wind. No two landings will ever be exactly the same because wind speed and direction are always changing. By checking the wind direction and strength (either via METAR or by observing the windsock at the airfield), you can anticipate how the wind will affect your landing. Knowing this in advance will help you mentally prepare for what’s coming.

5. Practise Landings in Daylight

Landing during daylight hours is far easier than at night because you have more visual cues to help with spatial awareness. If you’re still getting the hang of landings, stick to daylight practice to simplify the process.

6. Maintain a Good Scan – Check the Instruments

Professional pilots constantly monitor their surroundings both inside and outside the cockpit. A quick and consistent scan of the instruments, even in VFR conditions, helps catch any trends early. Merging information from the cockpit with your visual observations will enhance your landing accuracy.

7. Look at the End of the Runway

Many student pilots struggle with where to focus their gaze during the flare. As you approach the last 100 feet, direct your attention to the end of the runway. Focusing on distant points makes it easier to judge depth and alignment compared to looking directly over the nose of the aircraft.

8. Keep Your Aim Point Fixed

A steady aim point on your windscreen helps ensure a smooth descent. If your aim point starts to move up, you’re getting too low, and if it shifts down, you’re getting too high. Keep the aim point in the same position and watch it grow in size as you get closer.

9. Use Flaps Wisely

Flaps can be incredibly helpful, but you don’t always need to use full flaps. In windy conditions, using less or even no flaps can make the controls more responsive, giving you extra control to handle the gusts.

10. Monitor the PAPI Lights

Precision Approach Path Indicators (PAPIs) provide guidance on your approach angle. While calibrated for larger aircraft, they can still help light aircraft pilots stay on track before the final flare. A perfect approach will show two white and two red lights—anything more or less signals you’re off the ideal slope.

11. Learn to Handle Crosswinds

Even a slight crosswind can complicate a landing for beginners. The best way to conquer this is practice. Avoiding windy conditions won’t help you improve. It’s best to learn crosswind techniques early on.

12. Stick to the Correct Parameters

Don’t become complacent with your landings. Even if you’re flying at a familiar airfield, always aim for accuracy in your airspeed, altitude, and runway alignment. Getting these right every time ensures you’ll be able to adapt when landing at more challenging airports.

13. Understand What Makes a Good Landing

A good landing isn’t just about a smooth touchdown. It’s about hitting the right speed, attitude, and landing on the centreline at the predetermined point on the runway. Don’t worry if it isn’t always silky smooth—focus on the essentials.

14. Keep Flying Until You’re on the Ground

Don’t stop flying the plane once you begin the flare. Stay focused and in control right up until the wheels touch down. Small adjustments may still be needed during those last few moments to ensure a safe and stable landing.

15. Prepare Your Landing Briefing

Professional pilots always brief themselves before landing. Even if you’re flying solo, talk through the landing, consider any potential challenges, and visualise the approach. Use the acronym WANTEM to help you cover the key aspects:

• Wind
• Aircraft setup
• NOTAMs and navigation aids
• Threats (such as terrain or complex airspace)
• Errors you might make
• Mitigation strategies, including your go-around plan.

16. Set ‘Gates’ for Your Approach

To maintain a stable approach, set checkpoints or ‘gates’ during the descent. These could be altitude or configuration targets at specific points, such as downwind or final approach. By reaching these gates correctly, you’ll know your approach is going smoothly.

Further Frequently Asked Questions

 How Do Pilots Land Perfectly? Landing perfectly comes down to experience. With practice, you develop a feel for what looks and feels right during an approach. Remember, even seasoned pilots sometimes have rough landings, so don’t be discouraged if it takes time.

Why Are My Landings Too Hard? Hard landings often occur due to mistiming the flare. Flaring too late means the plane still has a descent rate when the wheels touch down, resulting in a firm impact. Alternatively, flaring too early can cause the plane to drop onto the runway after losing lift.

How Can I Stop Bouncing on Landing? Bouncing usually happens due to a hard touchdown or flaring at the wrong point. If you do bounce, avoid pulling back sharply—this can worsen the situation. Instead, hold the attitude and allow the aircraft to settle, or initiate a go-around.

Final Thoughts

Anyone can learn to land smoothly with the right techniques and practice. Focus on continuous improvement, seek out good instruction, and apply these tips. You’ll see your landings improve as your confidence grows.

If you have any questions then reach out to your instructor or contact the operations team for advice and support. Dont forget you

Capt. Laurie Ling

Instructor

Tips for effective communication and feedback:

1. Ask Questions: If something is unclear, don’t hesitate to ask your instructor for clarification. Understanding is crucial for safe flying.
2. Be Honest: Share your feelings about the lesson, whether you’re feeling anxious or confident. This helps your instructor tailor their teaching approach.
3. Request Specific Feedback: After performing manoeuvres, ask your instructor what you did well and what you could improve. Specific feedback helps you learn more effectively.
4. Use Clear Language: Communicate clearly and concisely, especially when speaking to air traffic control or your instructor. This is critical for safe operations.
5. Follow Up: After your lesson, review what you learned with your instructor. This reinforces your understanding and helps consolidate your skills.

A logbook is an essential tool for pilots, serving several important purposes:

• Tracking Flight Hours: It helps you record your total flying time, which is crucial for meeting licensing requirements.
• Documenting Experiences: You can log different types of flights, such as solo, dual instruction, and cross-country, showcasing your training progress.
• Reflecting on Progress: Reviewing your logbook allows you to see your development over time, which can be motivating and help you set future goals.
• Meeting Regulations: Many aviation authorities require accurate logging of hours for currency and certification. Keeping an accurate logbook is a legal obligation.

Basic definitions and examples of each type of airspace:

• Controlled Airspace: This is airspace where air traffic control (ATC) provides guidance and services to aircraft. Pilots must communicate with ATC and follow specific procedures. Examples include Class A, C, and D airspace around busy airports.
• Uncontrolled Airspace: In this airspace, pilots can operate without needing to communicate with ATC, allowing for more freedom. However, basic safety regulations still apply. An example is Class G airspace, typically found in rural areas or below certain altitudes.

Night Flying

There can be no doubt that the acquisition of a night rating to your PPL thus allowing you the pleasure of seeing the Norfolk coastline on a beautiful moonlit night will enhance your flying experience and prove a useful skill.

There are however some serious considerations in taking off into the night sky and whilst we should always plan any flight carefully and consider how we might Manage potential Threats and Errors we need to consider the extra potential risks involved in Night Flying and ensure that are vigilant and apply a very sensible rule – IF IN DOUBT DON’T FLY.

Consider how few airfields are open at night in our area … none other than Norwich therefore what will you do if it closes unexpectedly?

This should affect your fuel decisions; you will need to consider that the nearest diversion is probably Southend so you must ensure sufficient diversion fuel and reserves.

Carefully consider the weather – not only consideration of METARS & TAFS but use your understanding of meteorology – cold clear nights can give fantastic visibility but what are the chances of mist or Fog forming?  How easy is it to avoid cloud at night? What is the freezing level? After all flight inadvertently into cloud at night not only brings the risk of disorientation but also the potential for Icing.

Enjoy night flying but remain conscious of the added Threats associated and ensure that you consider how to trap any potential Errors by having effective Mitigations in place.

As ever if you have any questions consult one of NAC’s instructors.

Let’s consider some potential extra hazards involved in night flying and how we might mitigate the risk by looking at this very useful chart produced by the Honourable Company of Air Pilots:

RT Procedures – Airfield Types of Service

Learning the correct use of the aircraft radio can often seem a daunting task – we are quite correctly taught to AVIATE – NAVIGATE – COMMUNICATE. i.e. we should of course ensure that the aircraft is safely under control and ensure that we know our location as our priorities before communicating.

CAP 413 is the CAA publication detailing radiotelephony procedures and forms the basis of the RT examination that forms part of student training. It is important therefore that this is studied alongside your practical training in the aircraft to gain proficiency. Like all skills the key is to practice, some of this can be gained on the ground – either with an instructor or a friend using the various scripted exchanges in CAP 413.

Here at Norwich, we are used to an Air Traffic Control Service but as we start to explore other airfields during our Navigation exercises, we will encounter different levels of service, and it is important that we understand the difference and the correct terminology.

Air Traffic Control ATC

As in the title it is a ‘Control’ service. Calls therefore are to request a clearance and to read back and comply with the clearance issued by the controller. You must always use the aircraft full callsign (e.g. GBSSC) until it is abbreviated by the controller (e.g. GSC) after which you may use the abbreviated callsign. GROUND, TOWER, APPROACH, RADAR, DIRECTOR frequencies are Control frequencies.

The key point is that you are required to comply with a control service and follow the instructions issued by the controller.

(provided it is safe to do so – you can state ‘unable- stating the reason’  if the clearance you are given would result in an unsafe situation, e.g. compliance with the instruction would result in you no longer being able to fly in VMC).

Aerodrome Flight Information Service AFIS

This is not a control service. It provides information to ensure safe conduct of traffic within the ATZ and will give airfield data – runway in use and QNH, taxying instructions on the apron and airfield manoeuvring area will also be given and must be read back and complied with.

It cannot issue Clearances to Take Off or Land, such calls as ready for departure or final will receive the reply “At your Discretion”. If traffic is known to the AFIS officer (AFISO) then it will be passed to the pilot, e.g.

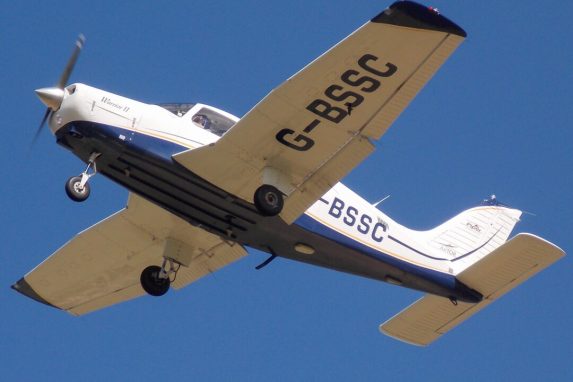

“GBSSC take off at your discretion – Cessna 152 right hand downwind”

“GBSSC land at your discretion”

If you consider it safe to take off or land, then you would reply

“GBSSC taking off”

“GBSSC Landing”

The key point is that the AFISO cannot ‘Clear you to land or take-off’ but can advise on information known to the AFISO

If flying into an airfield with an AFIS service, before entering the ATZ you should request airfield information – the AFISO will inform you of QNH, Runway in use and any known traffic – but cannot issue joining instructions. It is important that you inform the AFISO of entry into the ATZ, follow any published procedures  and make all normal calls in the circuit.

INFORMATION is the designator for airfields with this type of service.

Air/Ground Communication Service (AGCS)

The radio operator may not be able to view any part of the airfield or airspace and may also be engaged in other airfield related tasks. Any information that may be provided is primarily related to reports made by pilots.

A pilot may request information whilst on the ground or in the air, but such information may not be available, or you may receive no reply at all. The pilot therefore will need to act on their own discretion ensuring that they comply with the Rules of the Air.

It is still important that the pilot clearly states their intentions on the published frequency, thus other traffic operating within the ATZ is aware.

The key point here is that you may receive very limited or no information at all, you will be acting on your own discretion in accordance with the Rules of the Air.

If flying into an airfield with an AGCS service, before entering the ATZ (if one exists) you should request information, if no reply received broadcast when entering the ATZ and comply with published circuit procedures making all normal circuit calls – you may receive no reply but it will ensure any other traffic is aware of your intentions.

RADIO is the designator for airfields with this type of service.

Planning

From the foregoing you can see that is very important when planning to visit other airfields that you clearly understand the level of service provided. Ensure that you have read the UK AIP entry for the airfield and any other available documents before your flight. Many airfields have webpages giving details of their procedures or supply a phone number to contact to obtain that information.

The level of service provided also dictates the RT calls that you will be required to make and therefore a careful study of CAP 413 will give you the knowledge required.

Captain Laurie Ling

Understanding the Pitot-Static system

The Pitot-Static system is a critical component in the aircraft, providing the pilot with essential data for safe and accurate flying. Here is a quick look at how it works and why it is so important.

• What is a Pitot Tube? – The Pitot tube measures dynamic pressure, that is the pressure from the air as the aircraft moves forward. It does this by being positioned outside the aircraft facing the airflow. It measures the airspeed by comparing this with the static pressure. The difference between dynamic pressure and static pressure is indicated on the airspeed indicator. Thus, Indicated Airspeed.

• What is the Static Port? – The static port measures static pressure, that is the ambient pressure at the aircraft’s altitude. It is located outside the airflow to avoid any airflow impact thus providing an accurate reading of the pressure that changes with altitude.

• Altimeter, Vertical Speed Indicator, Airspeed Indicator – These three critical instruments rely on the Pitot Static system:

The Airspeed Indicator using the difference between dynamic and static pressure to show how fast the aircraft is moving relative to the air.

The Altimeter measures altitude based on changes in the static pressure as the aircraft climbs or descends.

The Vertical Speed Indicator shows the rate of climb or descent by comparing static pressure changes over time.

• Safety – A reliable Pitot-Static system is crucial for safe flight. If either Pitot or Static ports are blocked with debris or ice it can lead to inaccurate readings of the instruments which can be very dangerous.

• Checks – This is why Pitot and Static Ports should be carefully checked during your pre-flight inspection, also in the cockpit carefully check all instruments to ensure that glass is unbroken and not loose as any ‘leaks’ in the system will lead to inaccurate readings of the pressure instruments

Captain Laurie Ling

Best Rate of Climb (Vy) and Best angle of Climb (Vx)

Rate of Climb – This refers to how quickly an aircraft increases its altitude typically expressed in feet per minute; it is measured vertically in terms of altitude gained over time and thus how quickly an aircraft can gain altitude after take-off.  Given normal operating conditions, sufficient runway length and no obstacles in the climb out path it represents normal operation to climb at Vy.

Angle of Climb – this refers to the angle at which the aircraft climbs relative to the horizontal plane, it represents a steeper climb angle thus it is a geometric relationship between altitude gained and horizontal distance covered. It is generally used when operating from airfields where there is a requirement to ensure safe clearance from obstacles in the climb out path. We would therefore plan to climb at Vx under specific circumstances where obstacle clearance is a consideration.

When we are planning our flight, we should carry out performance calculations using the Pilots Operating Handbook (POH) as both are influenced by factors such as Engine Power, Weight and atmospheric conditions such as temperature, pressure, wind and the aircrafts configuration.

These factors must then be considered in relation to the runway in use and any obstacle clearance required in the climb out path to determine (a) can we depart safely (b) the correct technique to use.

Toggle Content

Example

Wind at 2000ft is 120/30. The track to our destination is 230°T. The distance to fly is 85nm.

Setting the Wind

1. Put the wind direction under the index, in this case 120°.
2. Move the Slide so that a thick line is under the blue centre In this case, we use the 100 line.
3. Mark the wind speed down from the blue circle, here by 30 knots, on the 70 line. We have circled it to make it easier to see.

Adding you track to the CRP

1. Move the slide to put the TAS under the blue centre circle (We’ve used 90 knots).
2. Move the inner circle till your track (230°) is under the index.
3. Note the wind velocity is showing a 16° drift to the right.

Balancing drift and working out ground speed

1. As there is 16° of drift to the right, we move the inner circle 16° to the right (214°).
2. The drift moved showing 18° drift to the right, so we’ve moved the inner circle 2° more to the right (212°).
3. You will notice the track (230°) on the inner circle is under the 18° drift line on the outer circle. This is balanced with the drift showing on the wind face.
4. Read the groundspeed of 96 indicated under your velocity mark.

Calculating time (Calculator side)

1. Put the 60 index on the inner circle under your ground speed (96 knots).
2. Put the cursor on the 85nm (the distance from the example) and read off how long it will take on the inner circle (53minutes).

Now you try

Wind at 2000ft is 240/25. The track to our destination is 190°T.

The distance to fly is 45mn. Use a TAS of 95 knots.

STOP SCROLLING…. ANSWERS BELOW……..

>

>

>

>

>

Understanding altimetry settings is key to flying safely and precisely. Breaking down the basics:

QFE – Altimeter set to the pressure at the airfield showing the height above that specific airfield.

QNH – Altimeter set to Sea Level Pressure by region showing altitude above mean sea level. It is important that the correct regional QNH is set.

QNE – Altimeter set to 1013 Hpa, commonly used above the transition altitude. Altitudes are then expressed as Flight Levels.

ISA – A standardised model in aviation that defines baseline atmospheric conditions for altitude and pressure settings. ISA assumes sea level pressure of 1013.2 Hpa and a temperature of 15 degrees Celsius with temperature decreasing by 2 degrees per 1000 feet.

Transition Altitude – The altitude at which pilots switch from using QNH to QNE.

Transition Layer – The zone between Transition Altitude and Transition Level ensuring that there is no conflict between aircraft climbing to Flight Levels and those descending to Altitudes.

Transition Level – The lowest useable Flight Level above Transition Altitude, on descent pilots switch from QNE to QNH at the transition level.

Captain Laurie Ling

Statistics show that reluctance to go-around from an unstable approach is a major cause of aircraft incidents and that go-arounds, due to lack of practice,  can be  among the riskiest manoeuvres in general aviation. If you need to prepare for the challenges of a rejected landing, you may find it more complicated than you thought.

Luckily, with knowledge and training, go-arounds can become second nature.

In this article, we’ll cover everything you need to know to make safe, controlled go-arounds every time.

Key Takeaways

• Go-arounds are an important, potentially life-saving manoeuvre.
• A bad approach results in a bad landing. The best choice is to abandon a bad landing and go around.
• Pilots avoid go-arounds because it is seen as an admission of guilt.
• Go-arounds have little margin for error. Practice helps to avoid poor performance.

What Is a Go-Around?

• A go-around is a manoeuvre performed to abort or reject a landing on the final approach or once the aircraft has already touched down.
• Pilots should always perform the manoeuvre when a landing is unsafe or can result in an incident. These include a runway collision, porpoising, bouncing, or possible overrun.
• A pilot utilises full power to perform a go-around, pitches the nose up, and climbs away as usual. It gives you another opportunity to come around and land.
• A pilot can choose to go around at any point if they feel the landing is unsafe. ATC can also ask for a go-around if the landing runway is unsafe or for spacing reasons.

Top Reasons for Go-Arounds

Unstable Approach

An aircraft must have a stabilised approach before landing.

An approach is stable when:

• The aircraft is on the correct flight path, i.e., on runway centreline and glideslope.
• Only small control inputs are required to maintain the correct flight path.
• All appropriate checklists and landing briefings are complete.
• Airspeed is correct.
• The aircraft is in the correct landing configuration. The sink rate is less than 1000 fpm. If the landing requires a steep approach due to terrain, the pilot must brief it beforehand.
• Appropriate power setting to maintain airspeed and sink rate.

If the approach meets these criteria, it is considered stable and is safe to land in such a manner.

If the approach is unstable, the pilot should initiate a go-around at a predetermined altitude, recommended 500 ft for VFR and 1,000 ft for IFR flights.

Runway Not Clear

• A pilot should always go around when a safe landing is impossible. A go-around is necessary when the runway is obstructed, either by an aircraft or object.

Weather

Go-arounds due to weather occur due to wind shear caused by gusting winds or microbursts.

• When an aircraft encounters horizontal wind shear, it could be blown off the centreline. Trying to make large corrections at low level to return to the centreline is dangerous, so you should go around.
• Similarly, if an aircraft encounters vertical wind shear, it reduces or increases the sink rate. It can cause the aircraft to lose the glideslope, and you should go around.

Technical Issues

Pilots can choose to go around if they are experiencing technical issues.

• A common example is when pilots are unsure if their landing gear is down and locked. They may consider performing a low pass followed by a go-around so the tower can check if the landing gear is down.

ATC Request

ATC can request that an aircraft go around. ATC will request a go-around when there isn’t enough spacing or when a collision might be possible.

• A common situation is if an aircraft is on final approach, and another holding on the runway cannot take off in time.

Anytime Safety Is in Question

• Pilots must always act decisively to maintain a safe margin. If safety is compromised, the pilot must abandon the landing and try again.
• Remember, correcting a bad landing is harder than maintaining a good one.

How Common Are Go-Arounds?

• Pilots perform go-arounds, but not as often as they should. Many pilots avoid going around in favour of trying to wrestle the aircraft onto the ground. While possible, it’s a risky and potentially dangerous decision to make.
• According to a study by the Flight Safety Foundation, only 3% of all unstable approaches result in a go-around. The study, titled “Go-around decision-making and execution project,” highlighted that failure to conduct a go-around is the number one risk factor in approach and landing accidents.
• The reason is psychological. Instead of viewing a go-around as a corrective measure, many pilots feel it represents a lack of skill. They think that if they perform the go-around they are admitting that they screwed up.
• They also find it embarrassing that others might question their skills and abilities.

How to Perform a Go-Around (Step-by-Step)

Every pilot should have the go-around in their arrival briefing and should plan for it on every approach to land – it helps to verbalise the procedure even when flying solo. They should also be well-versed in the manoeuvre to make it readily usable. Here’s how to do a flawless go-around every time.

We’ll explain how to do the technique in a small single-engine aircraft, such as a PA28. There are six main steps:

1. Advance the throttles to full power.
2. Pitch up for a climb-pitch attitude.
3. If full flap is used for the approach, retract drag flap and initially climb at Vx.
4. At a safe height (200’ AGL) retract remaining flap in stages and climb at Vy.
5. If flapless climb at Vy.
6. Re-adjust trim.

The first three steps are the most important and can be easily remembered as power up, pitch up, and clean up.

Full Power

• When performing a go-around, you want the best possible performance from the aircraft. So, you must advance the throttles to full power as soon as possible. It helps reduce the chances of a stall and puts you in a better position to arrest the descent and start your climb out.

Pitch for Climb

• The next immediate action is to arrest the descent. Pitching back to a normal climb attitude will stop the aircraft from descending.

Retract Flaps

• After adding full power and arresting the descent, the next step is to retract the flaps. You should immediately retract the flaps from full to 25 degrees.
• Once you have a positive rate of climb, and at a safe altitude, retract the flaps in stages.

Re-adjust Trim

• Many pilots trim the aircraft to maintain a steady nose-down attitude. So, when you perform a go-around, the controls will be quite heavy. Once you have the aircraft in trim it becomes easier to control reducing both physical and mental stress.

Radio Calls

• When you perform a go-around, you must inform ATC. They will then adjust spacing and give you further instructions on rejoining the circuit pattern while avoiding traffic.
• If you don’t have the time, that’s okay. The order is aviate, navigate, then communicate. Make sure to communicate as soon as possible but only once the aircraft is safely under control.

Frequent Go-Around Mistakes

Not Recognizing the Need for a Go-Around

Choosing when to go around is one of the most important decisions a pilot can make. It’s an extension of good decision making. A well executed go-around is never a bad decision, nor is it an admission of failure.

The best method to determine if a go-around is necessary is to separate the landing into sections.

Approach

If the approach is unstable, choose a hard altitude to initiate the go-around. For example, if the aircraft is unstable at 300 ft, there isn’t enough time to make corrections. So, you should go around.

Roundout and Flare

Pick a point on the runway at which you will touchdown. If the aircraft hasn’t touched down by this point, initiate a go-around.

Another important decision to consider is if the aircraft bounces or porpoises. If so, immediately execute a go-around. You could stall after a bounce or damage the landing gear while porpoising.

Delayed Go-Around Response

Another problem with go-arounds is poor response time. Once a pilot identifies the need for a go-around, it should be initiated promptly. Many pilots freeze when they realise their landing has gone awry, especially if the aircraft has already touched down.

Improper Application of Power

A pilot should advance to full throttle to get the most performance when beginning a go-around. Improperly applying power delays the process, increasing the risk of an accident.

Improper Aircraft Configuration

Properly configuring the aircraft during a go-around is vital. When going around, the pilot should immediately retract full flap to reduce drag and increase performance.

Once a positive rate is established and at a safe height reduce the flap in stages.

Reducing the flaps all at once will result in a large loss of lift, which can cause the aircraft to settle on the runway or stall.

Re-trimming the aircraft is also a vital step. It makes the pilot workload  much easier, reducing mental and physical fatigue.

Loss of Situational Awareness

When a pilot is preoccupied with a difficult task, it’s possible to lose situational awareness. While going around, pilots should be aware of their surroundings, obstacles, and traffic.

Loss of Control

A stall is possible during a go-around, especially if the pilot doesn’t use full power or reconfigure the aircraft correctly.

A stall is most likely if the pilot goes from landing flaps to zero flaps in one go. If a pilot stalls at a high power setting, the turning tendencies of the aircraft can cause it to go into a spin. At low altitudes, spins are unrecoverable and can lead to a loss of life.

Another issue is controlled flight into terrain (CFIT). CFIT is likely when the pilot does not pitch up adequately or if the aircraft stalls.

The risk of losing control is higher in instrument meteorological conditions (IMC) or at night. This is because the pilot no longer has a visual reference point to work with, i.e., the horizon. So, it’s important to use the flight instruments to maintain control.

Conclusion

When flown correctly the go-around is an important and potentially life-saving manoeuvre.

A pilot must be decisive, follow the procedure, and maintain full control during the manoeuvre.

Pilots tend to continue bad approaches rather than going around. The inability to abandon a bad approach can result in an accident.

Remember a go -around is not a failure and it should always be planned for in any approach!

Captain Laurie Ling

This article is about techniques to deal with soft grass or otherwise contaminated runways.

Soft field takeoffs are different to a normal takeoff – the goal is to transfer your aircraft’s weight from the wheels to the wings as quickly as possible. By lifting off as quickly as possible, you eliminate drag from grass, sand, mud snow, etc. And that’s important, because excessive drag on a runway can dramatically increase your takeoff roll.

Drag isn’t the only reason you want to use a soft field technique. If you’re on a very rough surface, a soft field takeoff can prevent you damaging your nose wheel on the takeoff roll.

Taxiing and Take-Off

 When you’re taxiing for takeoff on a soft surface, you want to keep your airplane always moving if possible. If you come to a complete stop and the runway is soft enough, your wheels could sink into the runway far enough for you to get stuck. You also want to keep full back pressure on the yoke, to keep as much weight off your nose as possible.

You’ll want to have your flaps configured for your soft field takeoff . This depends on your airplane, and you should always follow your POH, but as an example, the PA28 recommends 25 degrees of flaps. This increases lift, as well as your ability to get off the runway more quickly.

When you’re lined up with the runway, you want to smoothly add full power, as well as back pressure on the yoke (many airplanes suggest full back pressure initially, but again, it depends on the aircraft type). This does two things:

1) it reduces the weight on your nosewheel, and the stress it receives from the soft/rough field.

2) it allows you to lift off as soon as possible.

The Takeoff Roll

During the takeoff roll, your nose wheel will lift of first. As it comes off the ground, you need to start reducing back pressure slightly to prevent your plane from lifting off too aggressively. As you slowly reduce the back-pressure, you need to maintain the same nose-high attitude throughout the takeoff roll, and let the airplane fly itself off the runway.

As you lift off the runway, you need to keep in mind one very important thing: ground effect. The only reason your airplane can lift off the runway at such a slow speed is because of ground effect, it also means that your airplane isn’t ready to continue climbing – at least yet.

When you lift off the runway, you need to lower your aircraft’s nose and fly in ground effect while you accelerate to a safe speed, usually Vx.  This is one of the most challenging parts of a soft field takeoff – if you relax your back pressure too much, you can settle back down onto the runway. If you don’t relax it enough, you can climb out of ground effect, and them come back down to the runway because your airplane isn’t flying fast enough to continue climbing outside of ground effect.

As you accelerate to Vx in ground effect, you need to continuously relax back pressure to remain in ground effect. This is something that takes a little practice to perfect.

Climb Out

Once you’ve established a positive rate in your climb and at a safe height it’s time to clean up the airplane and climb away at Vy.

Common Errors

Soft field takeoffs can be challenging. Here are a few common problem areas:

• Not enough back-pressure during takeoff roll – which results in you not lifting off as soon as you can
• Climbing too steeply after takeoff, and not remaining in ground effect
• Over-controlling the yoke while accelerating to Vx
• Letting the airplane settle back onto the runway after liftoff

As ever these techniques are best practised with an instructor to attain competence and confidence in the technique.

Capt Laurie Ling

This article looks at the technique for landing on a soft field, wet grass or a contaminated runway.

Flying the approach

Any good landing starts with a stabilsed approach, it means you land in the correct place and transfer aircraft weight from wings to wheels gently.

The difference between a normal and soft field landing occurs once you cross the threshold. That’s because as you get close to touchdown, you want to hold the aircraft 1-2 feet off the runway in ground effect.

By holding your plane off the runway, you dissipate forward speed and allow your wheels to touch down at a slower speed

Once you enter ground effect, you may use a small amount of power to level off and make sure you touch down as slow as possible (although power isn’t necessary).

Landing

You need to fly the airplane to the ground, with your wings supporting the weight of the aircraft for as long as possible. Low-wing aircraft such as our PA28’s will have a more pronounced ground effect because the wing is closer to the ground.

After your main wheels touch down gently, you want to slowly remove power, if you had any in, and ensure that you hold sufficient back pressure to keep the nose wheel off the runway.

The main gear is much stronger than the nose wheel thus you need to keep the nose off the soft/rough surface until you have slowed down to a safe speed. What you do not want to do is to harshly apply brakes as this will almost certainly result in a skid.

If a short field any application of brakes needs to be gentle and progressive, if a skid develops reduce/release the brake pressure. Maintain back pressure throughout the landing roll and as you taxi clear of the runway until you reach a firm surface or stop to park.

Common Errors

• Too fast descent rate, causing a hard touchdown
• Too high airspeed, causing excessive float
• Unstable approach, making it hard to touch down smoothly
• Allowing the nose wheel to touch down early, causing excessive stress on the nose wheel and the possibility of it digging into soft ground
• Braking resulting in a skid

Soft field landings take practice, practice with an instructor to perfect your technique.

Capt Laurie Ling

The 3-degree glide slope is the global standard for the vast majority of airport approaches and provides a balanced path for safe landings (exceptions exist where obstacles or terrain require a steeper angle).

The PAPI’s and ILS glideslopes at suitably equipped airports are aligned with this 3-degree slope.

The maths to calculate Rate of Descent to maintain 3 degrees is very straightforward:

To maintain a 3 degree slope you need to lose approximately 300 ft/Nm.

To calculate when to commence your descent simply divide the altitude to lose by 300.

For example: You need to descend from 7000 feet to 1000 feet – that is 6000 feet to lose. 6000/300 = 20 Nm out to commence your descent at rate of 450 feet per minute assuming a groundspeed of 90 Knots.

As we know we often get asked to extend downwind due traffic, in calculating when to set up descent we should consider the same principle.

Norwich elevation 117 feet, normal final approach point is about 2 Nm so starting from approx. 700 feet equates to 300 feet/Nm to maintain our 3-degree slope, with a groundspeed of say 70 knots our rate of descent will be 350 feet per minute.

 If we have extended downwind, we need to delay our descent from circuit altitude of 1100 feet.

1100 – 117 = 983 feet to lose, at 300’ per Nm descent starts at 3.3 miles.

1 in 60 Rule

1:60 Principle.

For every 60 Nm travelled, then being displaced 1 Nm to the side = an angle of approximately 1 degree off track i.e. the Track Made Good has diverged from the Planned Track. This is called Track Error (TE).


If the a/c heading is adjusted towards the track by the amount the Track Made Good has diverged from the Planned Track, then the a/c will parallel track (but still will be offset from the Planned track – just not getting any further away)

Adjust the heading even more towards the planned track & the a/c will eventually converge. Obviously the more towards track the sooner that the Planned Track will be regained. This is called Closing Angle

Regaining track works similarly to getting off track i.e.  the 1 in 60 approximation can be used to calculate where along track to rejoin.

The amount to alter heading = a bit to stop the divergence (to parallel track) + another bit (to regain track) i.e. Track Error + Closing Angle.


Doing complicated maths when flying is beyond most of us so to do this in your head:

If you’ve travelled 60 nm, then 1 nm off track = 1 degree Track Error (TE) – i.e. 1 x Dist. off track
If 2 nm off track then TE = 2 degrees
If 3 nm off track then TE = 3 degrees
If 4 nm off track then TE = 4 degrees, etc, etc.

If you’ve travelled 30 nm, then 1 nm off track = 2 degrees – i.e. 2 x the dist. off track
If 2 nm off track then TE = 4 degrees
If 3 nm off track then TE = 6 degrees
If 4 nm off track then TE = 8 degrees, etc, etc.

If you’ve travelled 20 nm, then 1 nm off track = 3 degrees – i.e. 3 x the dist. off track
If 2 nm off track then TE = 6 degrees
If 3 nm off track then TE = 9 degrees
If 4 nm off track then TE = 12 degrees etc, etc.

If you’ve travelled 15 nm, then 1 nm off track = 4 degrees – i.e. 4 x the dist. off track
If 2 nm off track then TE = 8 degrees
If 3 nm off track then TE = 12 degrees
If 4 nm off track then TE = 16 degrees, etc, etc.


So, if you’ve travelled roughly 60 nm, multiply your distance off track by 1 to get the amount you need to alter HDG to parallel track.

If you’ve travelled roughly 30 nm, multiply distance off by 2.

If travelled roughly 20 nm, multiply by 3

If travelled roughly 15 nm, multiply by 4.

If you’ve travelled about 45 nm then use 1.5 times the distance off track e.g. 2 nm off track = 3 degrees TE.

Distance         Multiply Distance Off Track by

60 Miles                        Times 1
45 Miles                        Times 1.5
30 Miles                        Times 2
20 Miles                        Times 3
15 Miles                        Times 4

To get closing angle you can use the double the Track Error again which would cause you to regain track in the same distance you took to get off track.

Or, you could pick a feature off the chart that would be good point to regain track, & then use the 1:60 method to find the Closing Angle from your current off-track position to the desired point.

The Importance of Correct Altimeter Setting and avoiding Airspace Infringement

A significant number of airspace infringements are caused by pilots using an incorrect altimeter setting. The pilot may believe that they are remaining outside notified airspace by being either below or above, however due to an incorrectly set altimeter, they are flying higher or lower than they think.

Aircraft use altimeters to assess vertical distance from a specified datum; inaccurate

altimeter settings may also present an increased Risk to Life by loss of separation between Aircraft and/or terrain.

The correct QNH is essential for avoiding airspace which has limits defined as an altitude, avoiding Glider Launch Sites where a maximum altitude of winch launch is charted and any Prohibited, Restricted or Danger Areas that have an upper limit defined as an altitude. When flying, remember to check (and update as necessary) the QNH value that you have set. This can easily be done by calling an Air Traffic Service Unit or listening to ATIS or VOLMET broadcasts.

Aerodrome QNH is the observed pressure at an Aerodrome

Elevation corrected for temperature and reduced to mean sea level, using the

International Civil Aviation Organization (ICAO) formula. When Aerodrome QNH is set the altimeter will indicate the vertical distance relative to mean sea level (Altitude) for that Aerodrome.

Pressure can vary across the UK; thus it is important that as we fly cross country, we set the altimeter subscale to a relevant Aerodrome QNH adjacent to our route. A clue to the rate of change of QNH over a given area can be the strength of wind. Stronger winds result from greater changes in pressure and hence tend to indicate a more rapidly changing QNH.

Regional QNH is a forecast (not an actual) value of the lowest atmospheric pressure at mean sea level (MSL) within an Altimeter Setting Region (ASR) and the UK has a number of ASR’s which are indicated on VFR charts with pale blue 2-barred crosses.

These regional QNH values are available hourly for the period H+1 to H+2 and may be obtained from all aerodromes having an Air Traffic Service, from UK Flight Information Service, London Area Control (Swanwick) and Scottish Area Control (Prestwick), or by telephone.

• When set your altimeter will indicate your altitude above the forecast setting.
• Aircraft using this setting will never be lower than the indicated altitude.

They were introduced to aid terrain clearance in large areas where there was no local QNH reporting station, or where communications were poor. Caution should be exercised when given and operating with the regional QNH set, as this will not be a valid pressure setting for avoiding airspace which has a base defined as an altitude

There are sectors of Airspace that, when operational, do not form part of the Regional ASR system such as within all CTRs, within and below all TMAs, CTAs except Airways and the Worthing and Clacton Control Areas.  When flying in Airspace below TMAs and CTAs, pilots should use the QNH of an adjacent aerodrome if flying at or below the Transition Altitude. It may be assumed that for aerodromes located beneath such Areas, the differences in the QNH values are insignificant. When flying beneath Airways whose base levels are expressed as Altitudes pilots are recommended to use the QNH of an adjacent aerodrome to avoid penetrating the base of Controlled Airspace.

REMEMBER, using Regional QNH can cause you to be HIGHER meaning:

• Increased protection from obstacles below BUT
• Greater risk of penetrating the base of airspace above.

‘TAKE 2”

Of course, using the recommended ‘TAKE 2’ advice will help you to avoid infringing controlled airspace, it is prudent to always remain clear by a minimum of 2 Nautical Miles horizontally and a minimum of 200’ vertically.

Threat and Error Management

Airmanship is an often-used phrase in aviation – defined as using all of a pilot’s skill and knowledge in order to achieve a safe flight. One step further is to consider that it is using all available resources to achieve this. Those resources include weather forecasts, Airfield Information (AIP), Pilots Operating Handbook (POH), Tech Log, Notices to Airmen (NOTAMS), Information from your Flight School/Training organisation, Air Traffic services.

The concept of Threat and Error Management (TEM) is to help a pilot to think ahead and plan in advance for any eventualities that may affect your flight.

What is a THREAT?

Threats exist beyond your control, and they may increase the complexity of a flight or cause a degradation of safety. We cannot ‘eliminate’ threats, but we can ‘mitigate’ their effects by proper and thorough flight planning.

There are many and varied threats that can affect a safe flight – consider the following:

• Personal Wellbeing
• Weather
• Airfield
• ATC
• NOTAMS
• Technical problems

It is important therefore that we consider threats as part of our pre-flight planning and there are some useful ‘checklists’ that can assist us in this.

IMSAFE: – this is a personal checklist that should always be considered before flying:

• I – Illness – am I fit to fly? If you are not 100% then seriously consider how this may affect you. If in doubt – DON’T!
• M -Medication – is any medication taken likely to affect my ability to fly? Always consult your AME to assess your fitness to fly if taking medication.
• S – Stress – flying itself may induce a certain level of stress – especially a check flight; but if external factors are causing you undue stress these need to be addressed before flying.
• A – Alcohol (and drugs) – a ‘NO – GO’ Alcohol/Drugs and flying are never compatible!
• F – Fatigue – this is more than tiredness and can seriously affect our abilities and cognition. Fatigue can impair your cognitive and physical abilities, making it more challenging to fly safely. From concentration to hand-eye coordination, fatigue can be a significant threat.
• E – Emotion – You must be emotionally stable when flying. If there are external factors significantly affecting your emotions, you should address them before flying.

WANTS: – this a checklist of vital considerations before flying:

• W – Weather – Is the weather suitable for the planned flight and will it remain so for the duration and the route and destination and alternate that I am planning?
• A – Airfields/ATC – Am I briefed on local procedures and ATC provision for the flight I am undertaking? Do I have the correct charts? Do I require PPR? Have I prepared a PLOG? Are the airfield conditions suitable for flight?
• N – NOTAMS – Are there any that affect my route of flight?
• T – Technical – Is the aircraft fit to fly, all documents up to date and are there any defects that might affect the flight? Have I competed weight and balance calculations and performance calculations
• S – SkyDemon – or any other electronic nav equipment – do I know how to use it correctly? Is programmed properly?

We should also consider the 3 C’s:

• Currency – Am I current – when did I last fly?
• Competency – Are there any concerns that I have about my personal ability in making this flight?
• Complacency – Have I developed any bad habits?

What is an Error?

“To Err is Human!”

Errors can be defined as actions or inactions by the pilot that lead to deviations from the plan or flight path or exceedances of operational limitations. Unmanaged and/or mismanaged errors frequently lead to undesired aircraft states. Errors in the operational context thus tend to reduce the margins of safety and increase the probability of adverse events.

From the safety perspective, operational errors that are detected in a timely fashion and promptly responded to (i.e., properly managed) do not lead to undesired aircraft states, do not reduce margins of safety in flight, and thus become operationally inconsequential. In addition to its safety value, proper error management represents an example of successful human performance, presenting both learning and training value.

Mitigation or Management

Pilots must, as part of the normal discharge of their operational duties, employ countermeasures to keep threats and errors from reducing margins of safety in flight operations.

All countermeasures are necessarily pilot actions. However, some countermeasures to threats, errors and undesired aircraft states that pilots employ build upon “hard” resources provided by the aviation system. These resources are already in place in the system. The following would be examples of “hard” resources that pilots must employ as systemic-based countermeasures:

• Checklists
• Briefings
• Training
• Standard Operating Procedures (SOP’s)
• Pilots Operating Handbook
• Company procedures and policies

Other countermeasures are more directly related to the human contribution to the safety of flight operations. These are personal strategies and tactics, individual and team countermeasures, that typically include skills, knowledge and attitudes developed by human performance training. There are basically three categories of individual and team countermeasures:

• Planning countermeasures: essential for managing anticipated and unexpected threats
• Execution countermeasures: essential for error detection and error response
• Review countermeasures: essential for managing the changing conditions of a flight

There is a useful mnemonic that can be helpful here. When identifying a potential threat:

NUTAM

• Notice – identify the threat
• Understand – consider the implications of the threat
• Think Ahead – What actions do I need to take?
• Assess – The result of any intervention I might make.
• Manage – the situation accordingly and review.
